PBT Material 2 Poles Mini Jumper Connector for PCB #28 - 32 Applicable Wire

Brand Name : JVT

Model Number : JVT2541HPT-02BK

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Pitch : 2.54mm

type : open or close

Rating Current : 200V AC/DC

contact plating : tin plated

contact material : Brass

Color : many kinds

Contact Now

PBT Material 2 Poles Mini Jumper Connector for PCB #28 - 32 Applicable Wire

2.54mm Mini Jumper PCB Connector ,2poles ,available in red or black color ,PBT material ,10K/bag

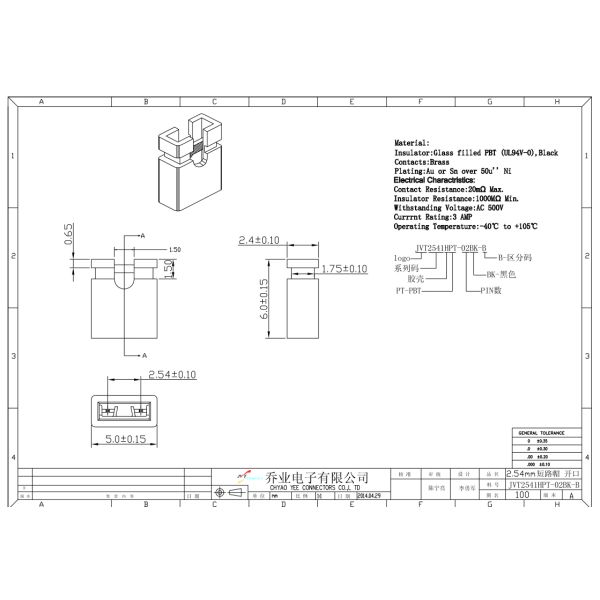

Specification Standardized:

Pitch	2.54mm
Poles	2
Applicable wire	#28-32
Rating Voltage	500V AC/DC
Rating Current	3A AC/DC
Withstand voltage	1000V AC/minute
Operating temperature	-40°C to +85°C
Insulation resistance	1000MΩ Min
Contact resistance	20MΩ Max.

Material Specification :

Housing: PBT,UL94V-0

PIN: Brass,Gold plated

PBT Material 2 Poles Mini Jumper Connector for PCB #28 - 32 Applicable Wire

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals

Main Export Markets:

Asia
Australia
Central/South America
Mid East/Africa
North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
